Overview

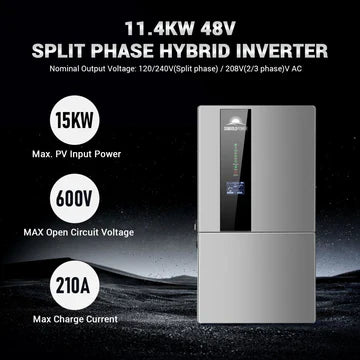

The SunGold Power 11.4kW split‑phase hybrid inverter supports grid‑tie, off‑grid, and battery‑backup operation with seamless transitions and high‑capacity solar input. With 15kW PV capability, three independent MPPT trackers, and <10ms transfer time, it delivers stable power for residential and light commercial systems requiring uninterrupted operation.
Details
This hybrid inverter provides 11,400W continuous AC output and up to 20kVA peak power for starting motors and high‑demand appliances. The three‑tracker MPPT design supports complex roof layouts and partial shading while maximizing solar harvest across multiple orientations.
Battery support includes lithium‑ion and lead‑acid chemistries from 40V to 64V, with up to 210A charge/discharge capability. The IP65/NEMA 3R enclosure supports outdoor wall‑mount installation and operates from –13°F to 140°F, with automatic derating above 113°F.

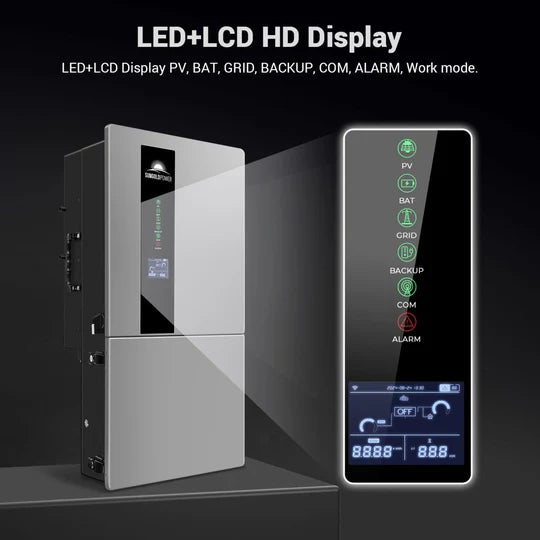

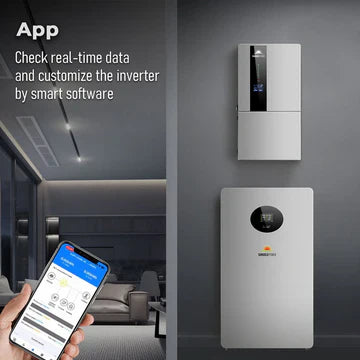

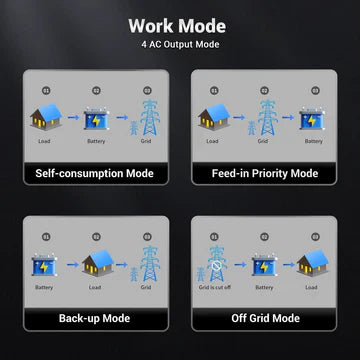

The inverter supports grid‑tie, off‑grid, and backup modes with <10ms transfer time for uninterrupted loads. Optional WiFi/LAN connectivity enables remote monitoring and configuration through a mobile app.
Specifications
-
Type: Hybrid
-
AC Output Power: 11,400W max
-
Phases: Split‑phase
-
DC Input Voltage: 70–540V MPPT range / 90V startup / 600V max
-
MPPT Trackers: 3
-
AC Output Voltage: 120/240V split‑phase or 208V (2/3 phase)
-
Battery Support: Lithium‑ion / Lead‑acid (40–64V, 210A charge/discharge)
-
Protections: UL 1741 SB, IEEE 1547:2018, DC Type II / AC Type III surge, overcurrent, anti‑islanding
-
Operating Conditions: –13°F to 140°F (derating above 113°F), IP65/NEMA 3R, wall‑mount
-
Warranty: 5 years
- Regular price
- $3,500.00
- Sale price
- $3,100.00
Overview
The SunGold Power 11.4kW split‑phase hybrid inverter supports grid‑tie, off‑grid, and battery‑backup operation with seamless transitions and high‑capacity solar input. With 15kW PV capability, three independent MPPT trackers, and <10ms transfer time, it delivers stable power for residential and light commercial systems requiring uninterrupted operation.
Details
This hybrid inverter provides 11,400W continuous AC output and up to 20kVA peak power for starting motors and high‑demand appliances. The three‑tracker MPPT design supports complex roof layouts and partial shading while maximizing solar harvest across multiple orientations.
Battery support includes lithium‑ion and lead‑acid chemistries from 40V to 64V, with up to 210A charge/discharge capability. The IP65/NEMA 3R enclosure supports outdoor wall‑mount installation and operates from –13°F to 140°F, with automatic derating above 113°F.
The inverter supports grid‑tie, off‑grid, and backup modes with <10ms transfer time for uninterrupted loads. Optional WiFi/LAN connectivity enables remote monitoring and configuration through a mobile app.
Specifications
-
Type: Hybrid
-
AC Output Power: 11,400W max
-
Phases: Split‑phase
-
DC Input Voltage: 70–540V MPPT range / 90V startup / 600V max
-
MPPT Trackers: 3
-
AC Output Voltage: 120/240V split‑phase or 208V (2/3 phase)
-
Battery Support: Lithium‑ion / Lead‑acid (40–64V, 210A charge/discharge)
-
Protections: UL 1741 SB, IEEE 1547:2018, DC Type II / AC Type III surge, overcurrent, anti‑islanding
-
Operating Conditions: –13°F to 140°F (derating above 113°F), IP65/NEMA 3R, wall‑mount
-
Warranty: 5 years
- Regular price
- $3,500.00
- Sale price
- $3,100.00
