Product Description

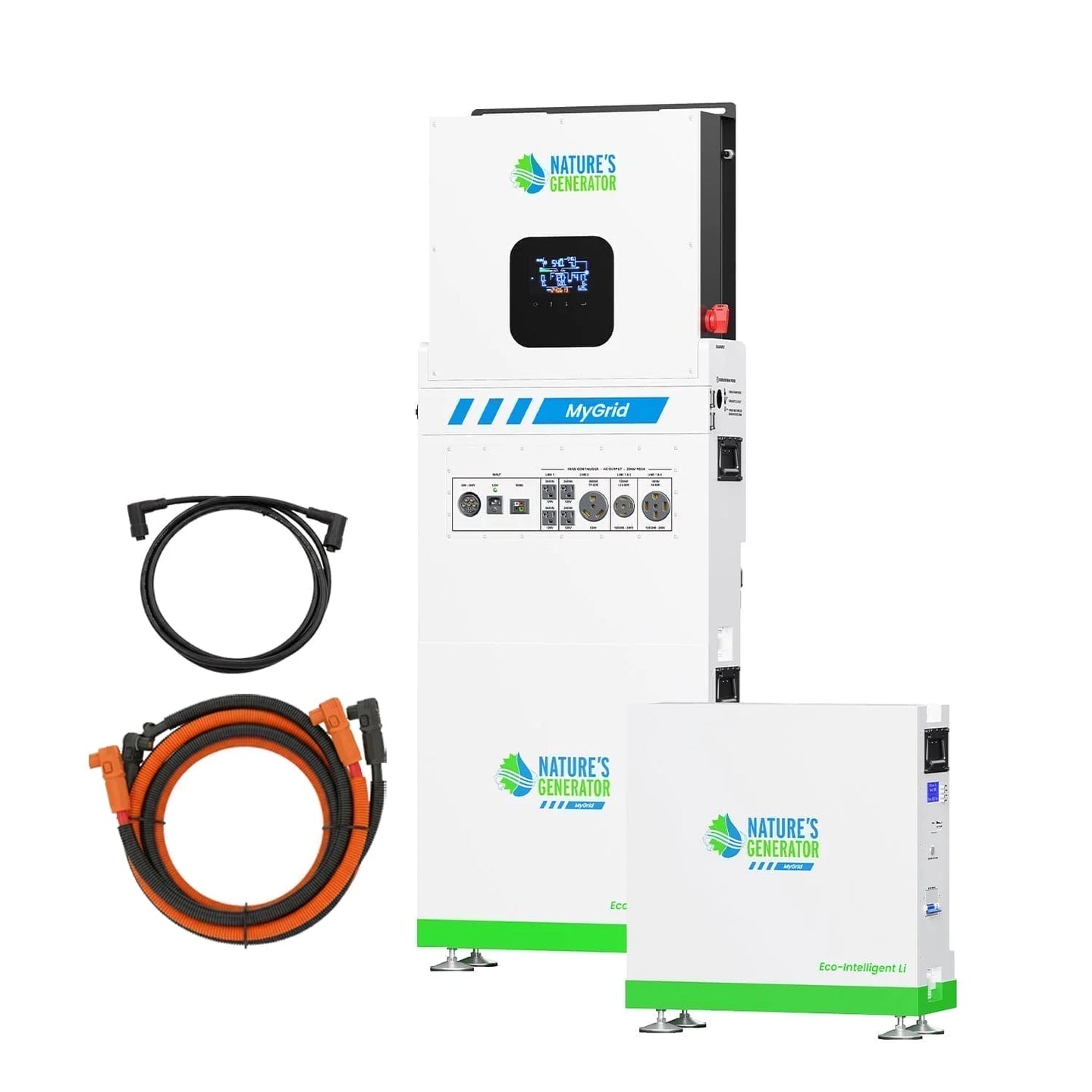

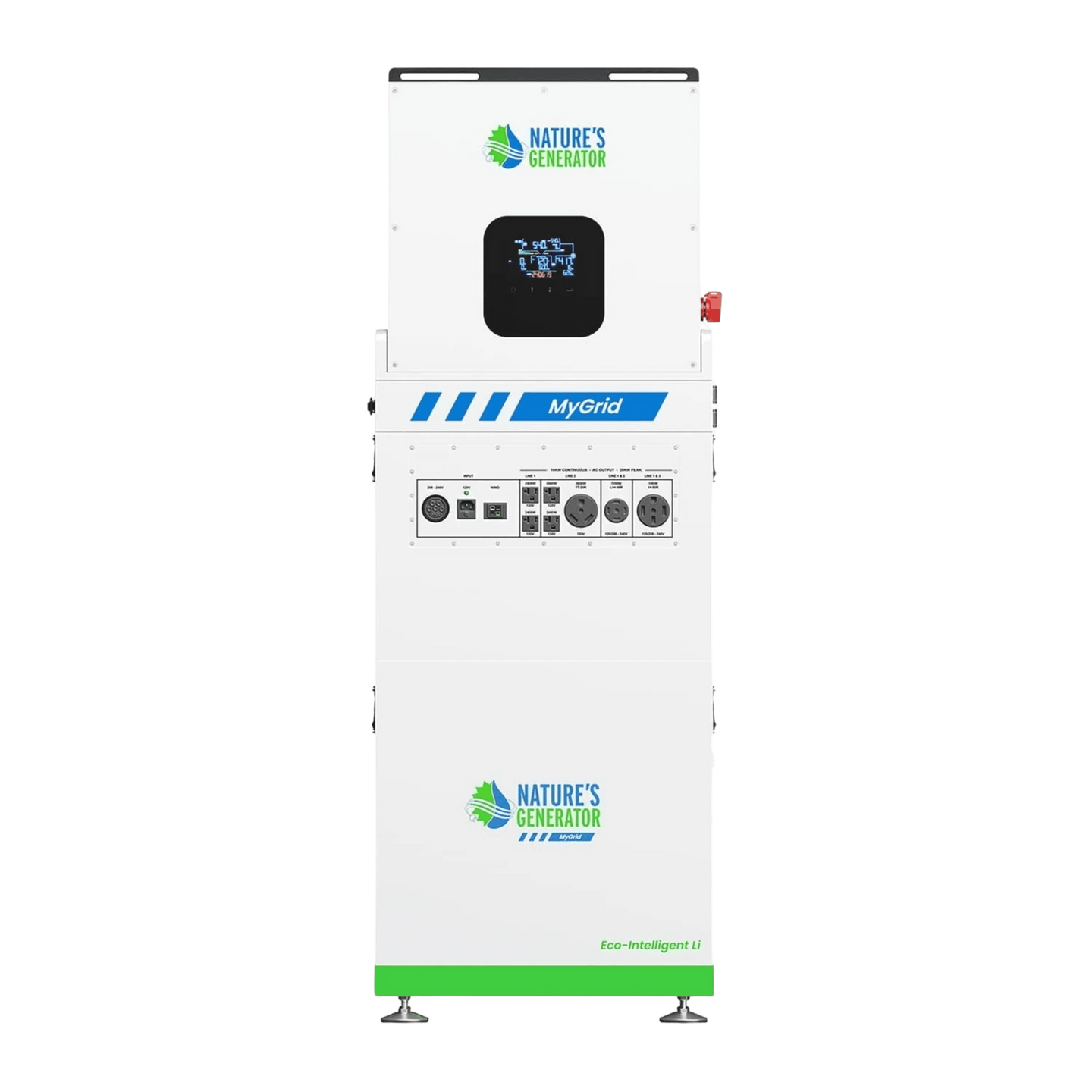

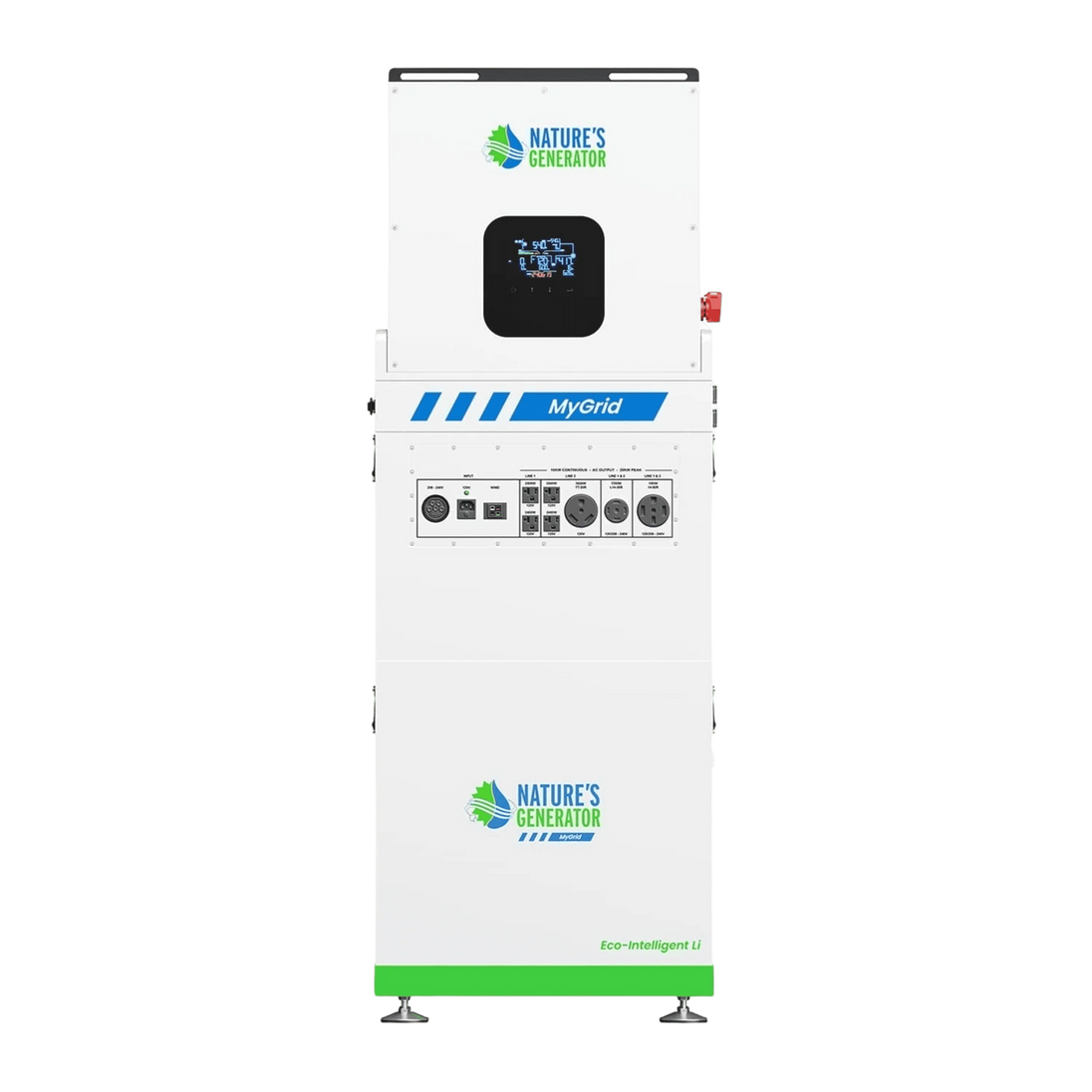

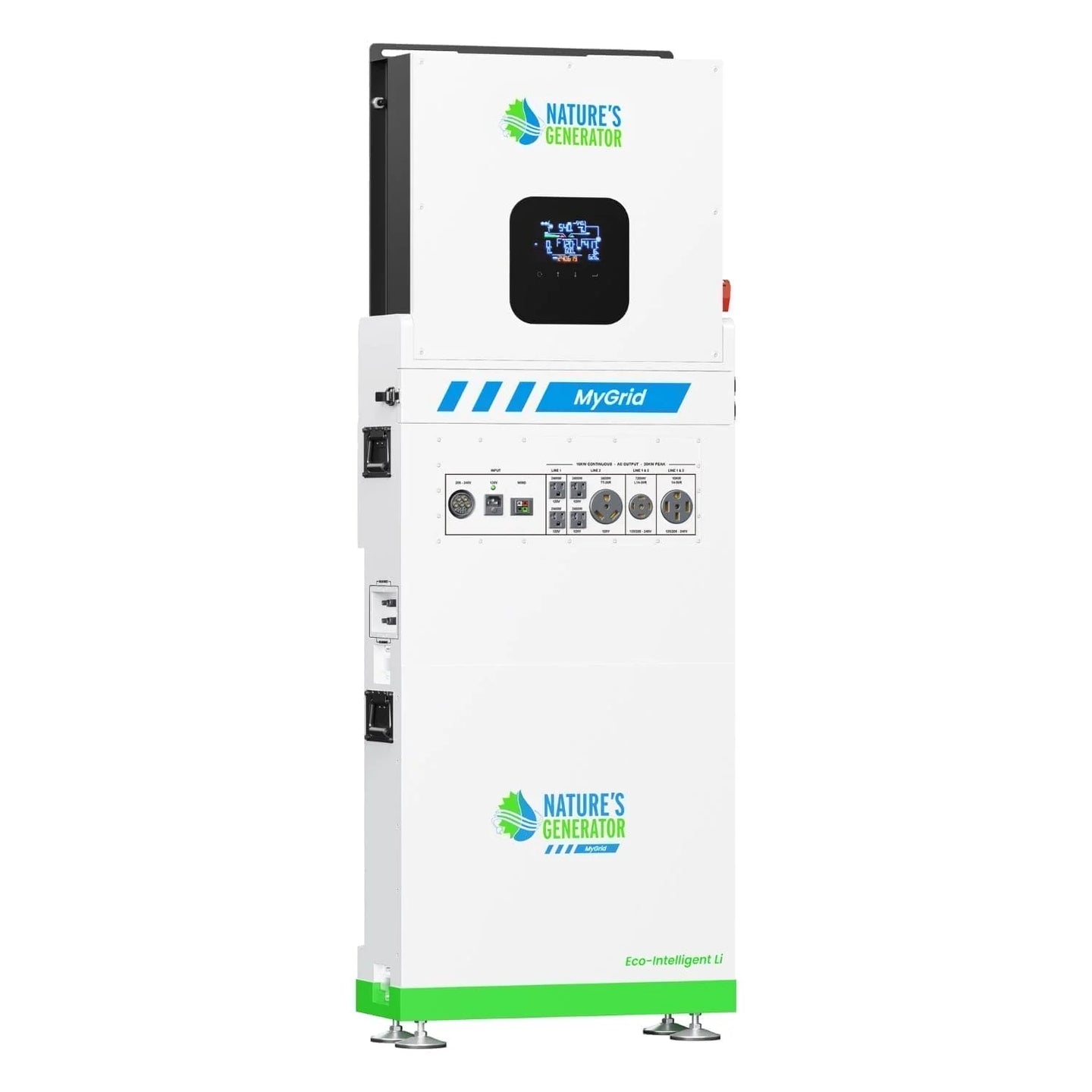

The Nature’s Generator MyGrid 10K delivers whole‑home backup capability with 10,000W of continuous pure sine wave output and a high‑capacity 10,496Wh LiFePO₄ battery engineered for long‑term reliability. Designed for residential backup, off‑grid systems, and light commercial applications, it supports 120V, 120/240V split‑phase, and 120/208V configurations for broad compatibility. With fast multi‑source charging, seamless auto‑switching, and support for solar, wind, and AC inputs, the MyGrid 10K provides dependable, scalable energy storage for everyday use and emergency power needs. Its slim, space‑efficient design and plug‑and‑play installation make it suitable for homes, rentals, and temporary setups requiring flexible, high‑capacity power.



Features

  • Delivers 10,000W continuous output with a 10,496Wh LiFePO₄ battery for whole‑home backup and off‑grid performance, with expansion options up to 20,000W output and 73,742Wh of storage.
  • Supports 120V, 120/240V, and 120/208V charging and discharging for residential and light commercial applications.
  • Offers fast recharge capability with up to 12,000W solar input, 350W wind input, and up to 4,500W AC charging, reaching 80% in approximately two hours.
  • Includes an integrated BMS for real‑time monitoring and battery protection, plus a plug‑and‑play installation design that reduces setup time and cost.
  • UL 1741 certified for safety and reliability, with support for solar, wind, AC, and generator charging for flexible, eco‑friendly energy use.



Technical Specifications

Inverter

  • Output Continuous Power: 10,000W
  • Peak Power: 20,000W Output Voltage: 120V/240V Split Phase or 120V/208V (2 of 3 Phases)
  • Output Frequency: 60Hz
  • Output Power Form: Pure Sine Wave
  • Auto Switching: <20ms

Battery

  • Capacity: 51.2V 205Ah (10,496Wh)
  • Cell Chemistry: Lithium Iron Phosphate (LiFePO₄)
  • Cycle Life: >6000 cycles
  • Self‑Discharge: Recharge every 6 months recommended

Charging

  • 120V AC Charger: 1000W 208V or 240V
  • AC Charger: 4500W
  • Wind Charger: 350W Solar Charger: 12,000W (120V DC – 550V DC)
  • Solar Charge Mode: MPPT

Ports Output Ports:

  • 4× NEMA 5‑20R Outlets
  • 1× NEMA TT‑30R Outlet
  • 1× NEMA L14‑30R Outlet
  • 1× NEMA 14‑50R Outlet

Input Ports:

  • 2× Solar Input Ports
  • 1× Wind Input Port
  • 1× 120V AC Input Port
  • 1× 208V or 240V AC Input Port

General

  • Optimal Operating Temperature: 68–86°F (20–30°C)
  • Storage Temperature: 14–113°F (-10–45°C)
  • Battery Charging Temperature: 32–113°F (0–45°C)
  • Battery Discharging Temperature: 14–113°F (-10–45°C)
  • Warranty: 5 Years Limited Warranty
  • Certification: UL 1741 (Certificate of Compliance)

Dimensions & Weight

  • Generator Dimensions: 21.8 × 8.5 × 38.5 in (555.4 × 216 × 980 mm)
  • Generator Weight: 152 lbs (69 kg)
